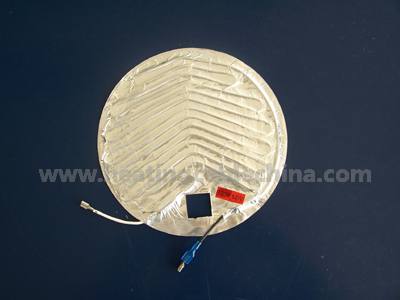

Aluminum Foil Heater

Aluminum Foil Heater
Aluminum Foil Heater Aluminum Foil Heater Aluminum Foil Heater Aluminum Foil Heater Aluminum Foil Heater Aluminum Foil Heater

Product Certification :

Product Structure:

The heating element can be either high temperature PVC or silicone insulated heating cable. This cable is placed between two aluminum sheets.
The aluminum foil element has adhesive backing as standard for quick and easy fixing to the area requiring temperature maintenance.
Cut outs in the material are possible, allowing for perfect fitting to the part on which the element will be mounted.

Product Application:

  • Defrost or freeze protection of refrigerator or ice box
  • Freeze protection of plate heat exchangers
  • Temperature maintenance of heated food counters in canteens
  • Anti-condensation of electronic or electric control boxes
  • Hermetic compressors heating
  • Anti-condensation of bathrooms mirrors
  • Anti-condensation of refrigerated display cabinets
  • Domestic appliances, medical

Technical Data Sheet:

  RLPV RLPG
Electrical insulation 105℃PVC Silicon rubber
Dimension Any dimension on request
Voltage Any voltage on request
Output Up to 2.5KW/m2
Tolerances ≤±5% on resistance
Insulation resistance in normal temperature   ≥100 MΩ
Dielectric strength in normal temperature 1800V 2S, No flashover and break down
Leakage current in working temperature ≤0.02 mA/m
Connect strength Heater wire and lead wire ≥36N 1min
Lead wire and terminal ≥58.8N 1min
Heater and Al-foil 400g/ 1min

Note: Temperature control
           Cut out the hole in aluminum foil
           Earthing of the aluminum foil
