Heating Cord

Heating Cord
Heating Cord Heating Cord Heating Cord

Product Certification :

Product Application:

The heating cables are mainly used in domestic appliances, cold industry and some machines where either freeze protection or temperature maintenance is required.

Type:

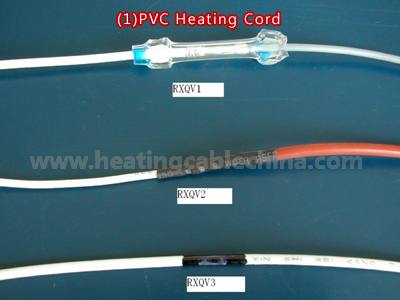

(1) RXQV——105℃PVC

  • RXQV1:Cable with lead wire. Connection insulation between heating part and lead wire with transparent tube of high frequency
  • RXQV2:Cable with lead wire. Connection insulation between heating part and lead wire with heating shrink tube with adhesive
  • RXQV3:This cable has no visible connections; the limit between hot and cold is indicated with a black mark. A specific feature of this cable is that it has the same thickness also at connection points
  RXQV1 RXQV2 RXQV3
Electrical insulation 105℃PVC
Heating element Nickel-Chromium or Copper-Nickel alloy wire
Output Up to 15W/m
Current load Max. 1A
Insulation on connection PVC transparent tube of high frequency Heating shrink
Diameter 2.3mm to 3.5mm 2.3mm to 3.5mm 2.5mm to 3.5mm
Voltage Up to 500V
Max. surface temperature of cable 105℃
Min. surface temperature of cable -30℃

(2) RXQG——Silicon rubber

  • RXQG1: Cable with lead wire. Connection insulation between heating part and lead wire with silicon moulding
  • RXQG2:Cable with lead wire. Connection insulation between heating part and lead wire with heating shrink tube with adhesive
  • RXQG: This cable has no visible connections; the limit between hot and cold is indicated with a black mark. A specific feature of this cable is that it has the same thickness also at connection points
  RXQG1 RXQG2 RXQG3
Electrical insulation Silicon rubber
Heating element Nickel-Chromium or Copper-Nickel alloy wire
Output Up to 40W/m
Current load Max. 1A
Insulation on connection Silicon moulding Heating shrink
Diameter 2.3mm to 3.5mm 2.3mm to 3.5mm 2.5mm to 3.5mm
Voltage Up to 500V
Max. surface temperature of cable 200℃
Min. surface temperature of cable -70℃

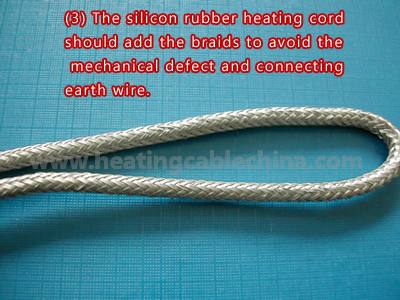

(3) The silicon cables can be supplied with a braid for mechanical protection and earthing.

  • Fiberglass
  • Tinned copper
  • Stainless steel wire
  • Aluminum Magnesium alloy wire
