Heating Wire

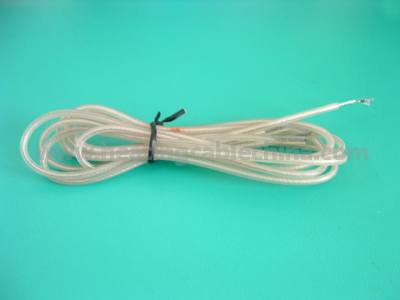

Heating Wire
Heating Wire Heating Wire

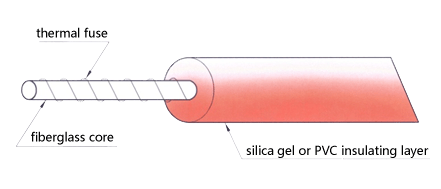

Product Structure:

Product Application:

The heater wire are mainly used in domestic appliances, cold industry and some machines where either freeze protection or temperature maintenance is required.

Technical Data Sheet:

  RXV RXG
Diameter From Ø2mm to Ø3mm From Ø2mm to Ø3.5mm
Winding support From Ø0.5mm to Ø1.5mm fiberglass core
Heating element Nickel-Chromium or Copper-Nickel alloy wire
Electrical insulation 105℃PVC Silicon rubber
Tolerances ±5% on resistance
+0.2/-0.1mm on diameter
Output Up to 15W/m Up to 40W/m
Voltage Max. 600V
Max. cable surface
temperature
105℃ 200℃
Min. cable surface
temperature
-30℃ -70℃
