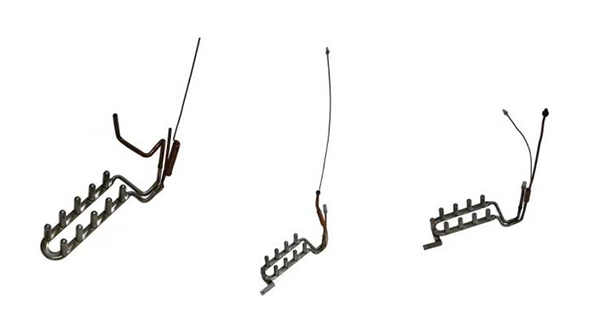

Bullet head evaporator/ice maker

Usage	bullet ice maker
Evaporator material	SUS304
Appearance	Pipe lined
Specifications	8-hole,9hole,10hole,customized
Connection methods	Copper welding, nickel based brazing,
Physical condistion	Internal circulation

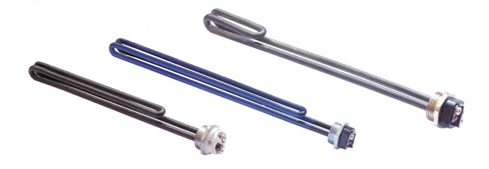

Electic Coated Heating Element

Application	Electric Storage Water Heater,Heat Pump Water Heating, solar waterheater auxiliary water heating.
Voltage Range	110V, 220V-240V
Power Range	80W-6000W(SingleTube)
Material	SUS304、SUS316L、SUS310S、Incoloy840、Incoloy840Mo、Incoloy800、Incoloy800M、Incoloy825、titanium Tube
Tube Diameter	6.6mm、8.0mm、8.5mm、10mm，12mm
Coated Surface	Enamel
Welding Type	Nickel hase brazing.Argon are full welding
Sealing	Epoxy resin seal

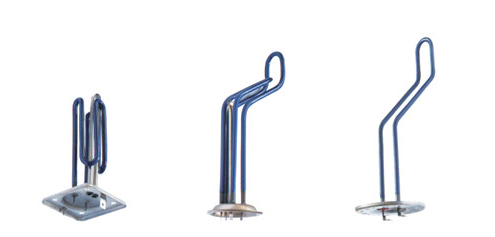

Spiral Electic Heating Element

Application	Heat Pump Water Heating, solar water heater auxiliary Water Heating.
Voltage Range	110V, 220V-240V
Power Range	80W-6000W(SingleTube)
Material	SUS304、SUS316L、SUS310S、Incoloy840、Incoloy840Mo、Incoloy800、Incoloy800M、Incoloy825、titanium Tube
Tube Diameter	6.6mm、8.0mm、8.5mm
Screw Head Specification	G1、11%NPSM
Welding Type	Nickel hase brazing with stainless steel flange,Rivet with gavanized nickel flange
Sealing	Epoxy resin seal

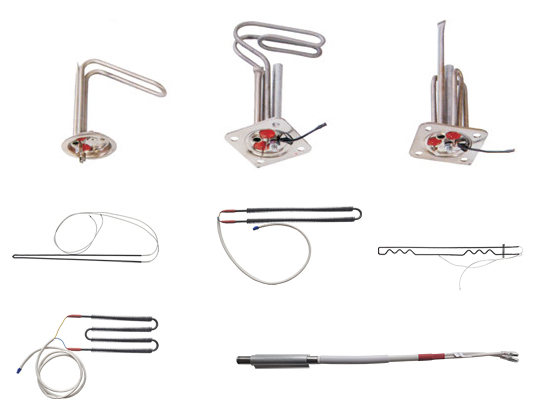

Electic Heating Element For Kitchen Po

Application	Kitchen Po
Voltage Range	110V, 220V-240V
Power Range	80W-6000W（SingleTube)
Material	SUS304、SUS316L、SUS310S、Incoloy840、Incoloy840Mo、Incoloy800、Incoloy800M、Incoloy825、titanium Tube
Tube Diameter	6.6mm、8.0mm、8.5mm、10mm，12mm
Welding Type	Nickel base brazing,Argon are welding
Sealing	Epoxy resin seal
